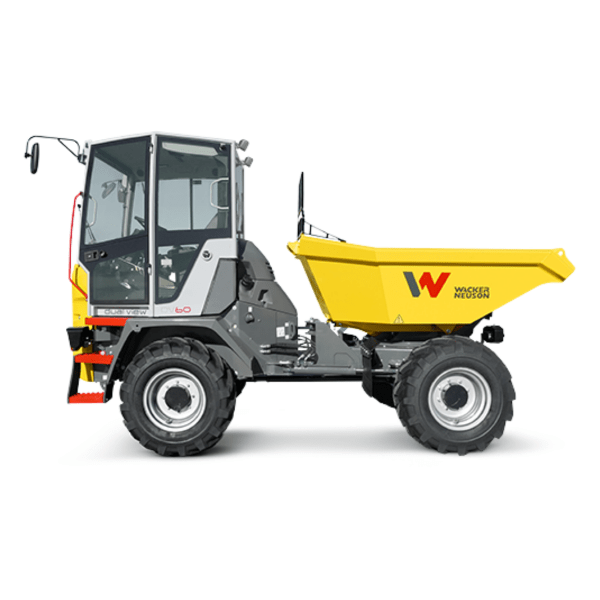

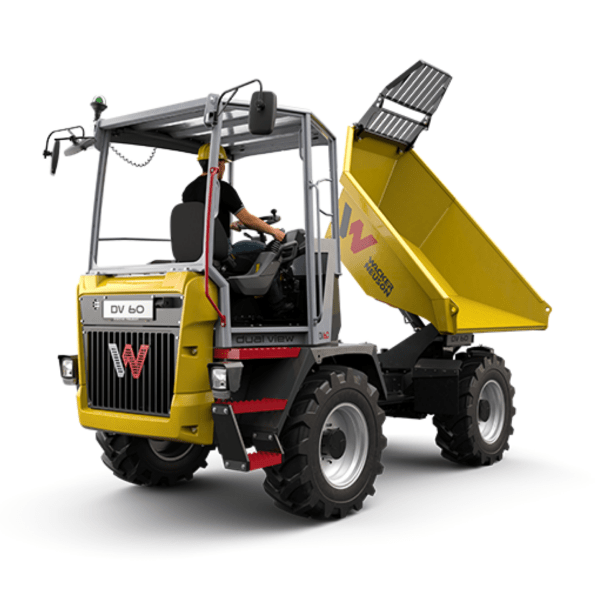

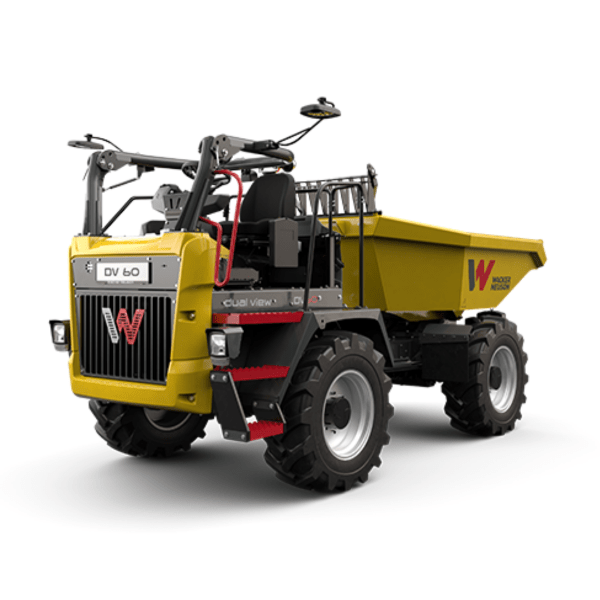

Dual View Dumper – DV60

Dual View Dumper – DV60

In stock

The driver’s cab concept allows the operator to turn the seat and console 180 degrees to determine the viewing and driving direction. The rotation can be conveniently performed from the driver’s seat by simple unlocking the seat console and then turn it around.
  • High driving and working position
  • Hydrostatic drive
  • More ease of use thanks to the ergonomic rotary console
  • Comfort cabin
SKU: DV60

ENQUIRE NOW

    Description

    Always on the safe side

    With the Dual View, the operator always has full visibility ahead: when unloading, he looks in the direction of the skip, before continuing driving he turns the seat and has unrestricted view in the driving direction. More visibility also means more safety. The driver sees where he is driving and better recognize potential dangers. Even annoying and potentially dangerous maneuvering or reversing is eliminated with the DV60 Dual View completely.

    High driving position:

    The Dual View safely runs as a construction truck, but is significantly more suitable for off-road applications.

    High working position:

    Full load monitoring and precise dumping.

    Hydrostatic drive

    • The vehicle stops as soon as the operator takes his foot off the gas pedal
    • Full focus on the job without frequent gear changes
    • One central hydraulic motor that drives both axles via a cardan shaft
    • Hydrostatic braking effect as soon as the foot is removed from the accelerator pedal
    • Low-wear drive for low service and maintenance costs
    • Controlled deceleration for regulated changeover, thus no abrupt changes of travel
    • Accelerate from 0 to maximum speed of 30 km/h without loss of traction



    More ease of use thanks to the ergonomic rotary console.

    Easy 180° rotation – time-consuming turning maneuvers are obsolete.

    1. Joystick handle with direction change switch and dump operation, so one hand can always stay on the steering wheel.
    2. Multifunction display for machine functions
    3. Standard rear-view camera monitor, so you can always see the skip in any seating position.
    4. Steering column with tilt adjustment simplifies safe entry and exit
    5. Additional storage space
    6. Ball bearing slewing ring for quick change of the seat position



    Simply see more.

    The DV60 Dual View stands out clearly from the requirements of the field of view standard ISO 5006: 2017.

    Beyond the green marked area, the operator can see a height of 1.2 m from the cabin in the Dual View.

    Beyond the dashed line, it is required to see a height of 1.2 m according to the ISO field of view standard.



    Comfort cabin

    The DV60 Dual View provides plenty of head and legroom inside the cabin. It is equipped with heating as standard and air conditioning is optionally available. The operator can work under ideal temperature conditions in summer as well as in the winter times. For extra safety, the cabin is always equipped with ROPS/FOPS Level II.

    Driving direction

    Skip direction

    Entering the driver’s cab

    Safe and comfortable ascent to the driver’s station. The steps are highlighted with signal color for better visibility.



    Please note that product availability can vary from country to country. It is possible that information / products may not be available in your country.

    DV60 Technical specifications

    Front tip skip Swivel tip skip

    Operating data
    Payload  kg 6,000 6,000
    Shipping weight standard components kg 4,002 4,209
    Shipping weight  kg 4,002 – 4,327 4,209 – 4,534
    Operating weight  kg 4,148 – 4,473 4,355 – 4,680
    Skip capacity – stroke l 2,700 2,350
    Skip capacity – heaped l 3,600 3,150
    Skip capacity – water messure l 1,900 1,600

    Engine / Motor
    Engine / Motor manufacturer  DEUTZ DEUTZ
    Engine / Motor type  TD2.9 L4 TD2.9 L4
    Engine / Motor  water-cooled 4-cylinder turbo-diesel water-cooled 4-cylinder turbo-diesel
    Engine performance  kW 55.4 55.4
    Displacement  cm³ 2,900 2,900
    Engine RPM  rpm 2200 2200
    Emissions  level 3b / Tier IV final level 3b / Tier IV final
    Traction drive  4WD / hydrostatic 4WD / hydrostatic
    Travel speed max. km/h 30 30
    Articulation angle  ° 29 29
    Pendulum angle  ° 11 11
    Turning radius  mm 6,100 5,980
    Gradeability  % 55 55
    Tires  405/70-20 405/70-20
    L x W x H  mm 4,450 / 2,230 / 3,377 4,450 / 2,230 / 3,377
    Steering pump  axial piston pump axial piston pump
    Flow rate  l/min 123 123
    Operating pressure  bar 480 480
    Duty pump  gear pump gear pump
    Flow rate  l/min 70.2 70.2
    Operating pressure  bar 240 240
    Tank capacity  l 80 80
    Sound level (LwA)  dB(A) 101 101

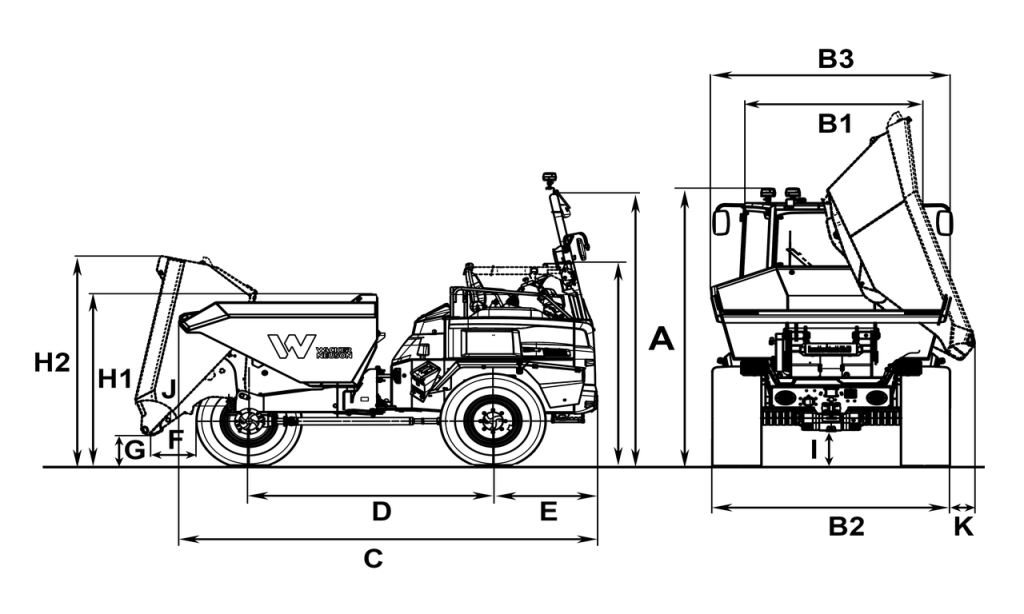

    DV60 Dimensions

    • Front tip skip
      Swivel tip skip
    • A
      Overall length ROPS
      4,448 mm
      4,699 mm
    • A
      Overall length Cabin
      4,448 mm
      4,699 mm
    • B
      Wheelbase
      2,485 mm
      2,485 mm
    • C
      Rear overhang
      1,157 mm
      1,157 mm
    • E
      Dumping distance
      565 mm
      456 mm
    • F
      Width
      2,230 mm
      2,230 mm
    • G
      Skip width
      2,328 mm
      2,218 mm
    • H
      Height ROPS
      3,377 mm
      3,377 mm
    • I
      Height ROPS tilted
      2,400 mm
      2,400 mm
    • J
      Height Cabin
      2,940 mm
      2,940 mm
    • K
      Dump height max.
      385 mm
      1,100 mm
    • L
      Skip height tilted
      2,463 mm
      3,639 mm
    • M
      Skip height
      1,828 mm
      1,981 mm
    • N
      Dumping distance to the side
      69 mm
    • O
      Ground clearance
      370 mm
      370 mm
    • –
      Dump angle
      50 °
      48 °

    Wacker Neuson DV60









    DV60 Standard components

    DV60 (level 3b / Tier IV):

    Diesel engine 55,4 kW (basic machine)

    Water cooled DEUTZ TD 2.9 diesel engine, 4-cylinder, 2900 ccm, turbo, performance 55.4 kW (75.3 hp), according to emission standards level 3b / Tier IV final for Europe (except CH) and North America.

    Standard equipment:

    General:

    • Ball-bearing 180° swivel seat console with automatic steering change, direction of travel and direction indicator
    • Main seat position: skip behind
    • Secondary seat position: skip in front
    • Payload 6,000 kg
    • Length / Width / Height (ROPS): 4,448 / 2,230 / 3,302 mm
    • Hydraulic front-tipping skip 2,700 L struck / 3,600 L heaped
    • Roll bar (ROPS)
    • Max. travel speed: 25 km/h(15.5 mph)
    • + 25 km/h (15.5 mph) forward direction speed in main seat position
    • + 15 km/h (9.3 mph) reverse direction speed in main seat position
    • + 20 km/h (12.4 mph) forward direction speed in secondary seat position
    • + 15 km/h (9.3 mph) reverse direction speed in secondary seat position
    • Tires: 405/70-20 (Mitas, MPT-01) tire tread with very good traction and self-cleaning
    • Reversing camera (IP69) with infrared and white LED’s
    • Multifunctional 7 inch color display (IP69) for camera and machine signals (e.g. speed, counter for service intervals)
    • Lockable vandalism protection for display
    • Documents box at the driver seat (format DIN A4, waterproof, lockable)
    • Trafic lighting for use in main position
    • One work light direction skip
    • Mirror package (left, right and front / ramp mirror)
    • Wheel chock
    • Reversing alarm, signal change depending on the seat position
    • Main battery switch and positive pole behind a closable cover, accessible from the ground

    Hydraulics:

    • Permanent four-wheel drive
    • Hydrostatic automotive drive
    • Hydrostatic drive with hydrostatic braking effect – with brake light
    • Hydrostatic frame steering (load sensing)
    • Combined brake-inch pedal, designed as two-circuit brake system
    • Electrically operated spring-loaded parking brake

    DV60 Options

    Wacker Neuson offers already pre-configured editions.

    Basic machine (engine level 5)
    + Swivel tip skip
    + Cabin (incl. air-conditioning system, synthetic leather seat and seat contact switch)
    + LED rotating beacon
    + Safety belt orange & rotating beacon LED green
    + Work lights rear
    + Protective grating of the skip structure
    + Access steps in signal color
    + Trailer coupling plus plug receptacle
    + DV 30/10/15/10 km/h

    Please note that outfitting cannot be changed in pre-configured products!
    Delivery times may vary (within the EU, approximately 10 working days ex factory), subject to prior sale.

    Of course, you can also configure the product yourself.

    The following options are available to choose from:

    Cabin:

    • Driver’s cabin (ROPS/FOPS Level II, incl. powerful heating, flat and tinted glass on all sides, laminated safety glass front and rear, single-pane safety glass left and right, windscreen wiper front and rear, radio preparation)
    • Air-conditioning system
    • Synthetic leather seat & seat contact switch
    • Safety belt orange & rotating beacon LED green
    • Canopy (ROPS/FOPS Level II)

     Hydraulics:

    •  Panolin HLP Synt46 (Bio)

    Painting:

    • Special painting cabin / canopy RAL (only RAL-paint possible)
    • Special painting in RAL (yellow parts only)
    • Special painting no RAL (yellow parts only)

    Security:

    • Security 24 C (2000)
    • Security 36 C (3000)
    • Security 48 C (4000)
    • Security 60 C (5000)

    Miscellaneous:

    • Water-cooled DEUTZ diesel engine TCD 2.9, 4-cylinder, 2,900 ccm, Power output 55.4 kW (75.3 HP) at rated speed 2,300 rpm (level 5)
    • DV 30/10/15/10 km/h (max. speed: 30 km/h forward in main seat position, 10 km/h backwards in main seat position and secondary seat position, 15 km/h forward in secondary seat position)
    • DV 30/15/20/15 km/h (max. speed: 30 km/h forward in main seat position, 15 km/h backwards in main seat position and secondary seat position, 20 km/h forward in secondary seat position)
    • Work lights rear(with cabine only)
    • Access steps in signal color
    • Lateral marker lights
    • Swivel tip skip (2,350 L struck / 3,150 L heaped)
    • Rotating beacon LED
    • Protective grating of the skip structure
    • Front and rear view camera (in addition to the standard reversing camera, mounted on the bumper)
    • Manufacturer confirmation (document for typification)
    • Lawn tires 41x18LL-22.5 (high flotation ability, best solution for sand and grass)
    • Special tires Mitas MPT-03 405/70-20 14 PR (universal profile for both road and off-road use)
    • Trailer coupling and plug receptacle
    • EquipCare
    • TÜV road approval (D)
