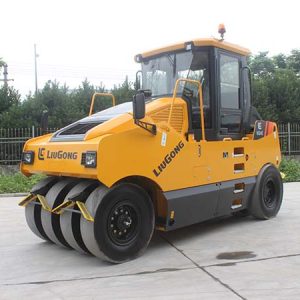

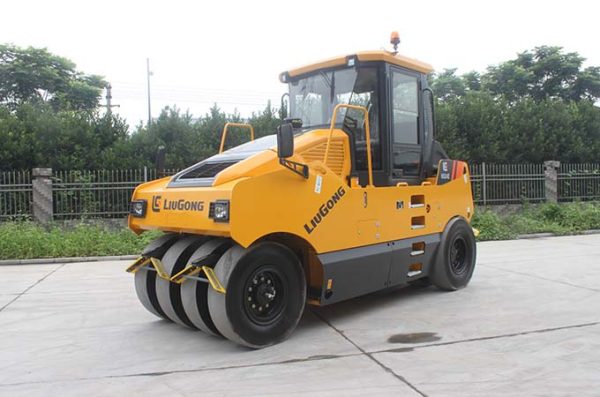

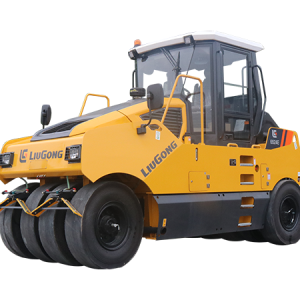

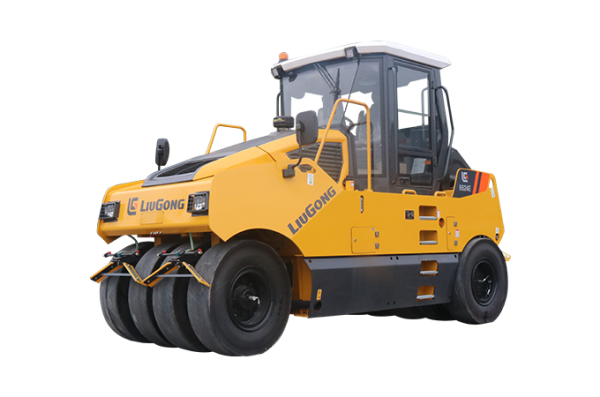

6524E Roller

6524E Roller

In stock

Equipped with the powerful Tier-3 Cummins engine QSB4.5, the 6524E roller has the power needed to get the job done with low fuel consumption and low noise.

ENQUIRE NOW

    Description

    24,000 kg Operating weight

    97 kW Rated Power

    SAFE AND COMFORTABLE OPERATION

    The 6524E roller looks great. The streamlined shape gives the operator good visibility. With attention to safety, this roller has 3-stage braking, multiple guarantees and disc brakes. Its convenient rear camera ensures a safer work site.

    Operators appreciate the comfort of the fully sealed panoramic cab with a rotating seat. The user-friendly dashboard and angle-adjustable steering wheel all help avoid operator fatigue.



    EXCELLENT DRIVING PERFORMANCE

    Using hydraulic-driven technology and equipped with an anti-slip differential system, the 6524E performs well with high gradeability.



    EASY MAINTENANCE

    To easily maintain the 6524E, it’s equipped with a convenient electric lifting cab that has a large opening angle of the hood and full back cover. Maintenance parts, such as the filter and water pump, are within easy reach.

    6524E
    Max. Operating Mass 24,000 kg
    Min. Operating Mass 11,000 kg

    Engine
    Model Cummins QSB4.5
    Emission Regulation Tier 3 / Stage III
    Rated Power 97 kW (132 hp / 134 ps) @ 2,200 rpm

    Drive
    Working Speed 0-7 km/h
    Compacting Width 2,250 mm
    Theoretical Gradeability 30%
    Tire Type 11.00-20-18 PR
    Tire Numbers Front 4 Rear 5

    Dimension
    Overall Length 4,800 mm
    Overall Width 2,310 mm
    Overall Height 3,270 mm
