Tracked Zero Tail Excavator – EZ80

Tracked Zero Tail Excavator – EZ80

In stock

The EZ80 is the biggest zero tail excavator from Wacker Neuson. Compact dimensions, reduced fuel consumption and high performance are united in one machine. With a digging depth of more than 4 meters and an efficient digging power, excavation jobs are completed quickly. Working close to walls or other environmental obstacles provides no issue for this zero tail machine in any operating position. This and its compact design make the EZ80 the first choice excavator when it comes to narrow inner city job sites. On top of that the EZ80 also convinces with up to 20% less fuel consumption and thus significantly reduced operating costs.
  • Precise and sensitive operation thanks to the Load Sensing Hydraulic system with LUDV (load-independent flow control).
  • Programmable presets by pressing a button, jog dial control system for float volumes per attachment tool – safe and recall.
  • Maintenance made easy: the tiltable cabin and the removable chassis cover provide quick and easy access, diagnostic tools offer further support.
  • Meets highest quality standards: High-quality materials and excellent workmanship ensure a long service life.
SKU: EZ80

ENQUIRE NOW

    Description

    Reduced dimensions

    • Significantly lower height and width than comparable competition models
    • Easily master tight construction sites and low passages
    • Higher level of stability due to the low center of gravity
    • Easy to transport

    Cabin, sight and operating comfort



    • Innovative solution for the optimal view – boom to the right next to the cabin
    • Operator comfort: spacious cabin, air cushioned seat and automatic air-conditioning system
    • Innovative front windshield system: two-part windshield can be slid up and moved – rain roof position
    • LED headlights for optimal illumination
    • Rear camera for more safety when in reverse operation

    zero tail – compact all around

    • Overall compact dimensions, ideal for working in narrow spaces.
    • Zero Tail Excavator for safe operation close to walls, roads, buildings or other surrounding limitations as in inner cities or busy roads.
    • Optional counterweights improve stability.

    Jog dial system

    • Technology from the auto industry.
    • For the direct control of important functions
    • Intuitive to operate
    Please note that product availability can vary from country to country. It is possible that information / products may not be available in your country.

    EZ80 Technical specifications

    Operating data
    Shipping weight min. 7,588 kg
    Operating weight 7,918 – 9,208 kg
    Biting force max. 43.7 kN
    Breakout force max. 68 kN
    Digging depth max. 4,169 mm
    Dumping height 4,587 – 4,749 mm
    Digging radius max. 7,190 mm
    Superstructure slewing speed 9 1/min
    L x W x H 6,939 x 2,250 x 2,562 mm
    Fuel tank capacity 85 l

    Engine / Motor
    Engine / Motor manufacturer Perkins
    Engine / Motor type 404J-E22T
    Engine / Motor Water-cooled 4-cylinder turbo diesel engine
    Emission standards stage 5
    Rated performance 42 kW
    Displacement 2,216 cm³
    RPM / speed 2,500 rpm
    Engine performance acc. to ISO 42 kW

    Battery
    Battery 88 Ah

    Hydraulic system
    Duty pump axial piston pump
    Flow rate 160 l/min
    Operating pressure for working and traction hydraulics 300 bar
    Operating pressure slewing gear 240 bar
    Hydraulic oil tank 92 l

    Undercarriage
    Travel speed max. 4.4 km/h
    Chain width 450 mm
    Ground clearance 357 mm

    Dozer Blade
    Width 2,250 mm
    Height 504 mm
    Stroke above ground 474 mm
    Stroke below ground 523 mm

    Sound level
    Sound level (LwA) acc. to 2000/14/EC 97 dB(A)
    Cabin – specified sound pressure level LpA acc. to ISO 6394 79 dB(A)

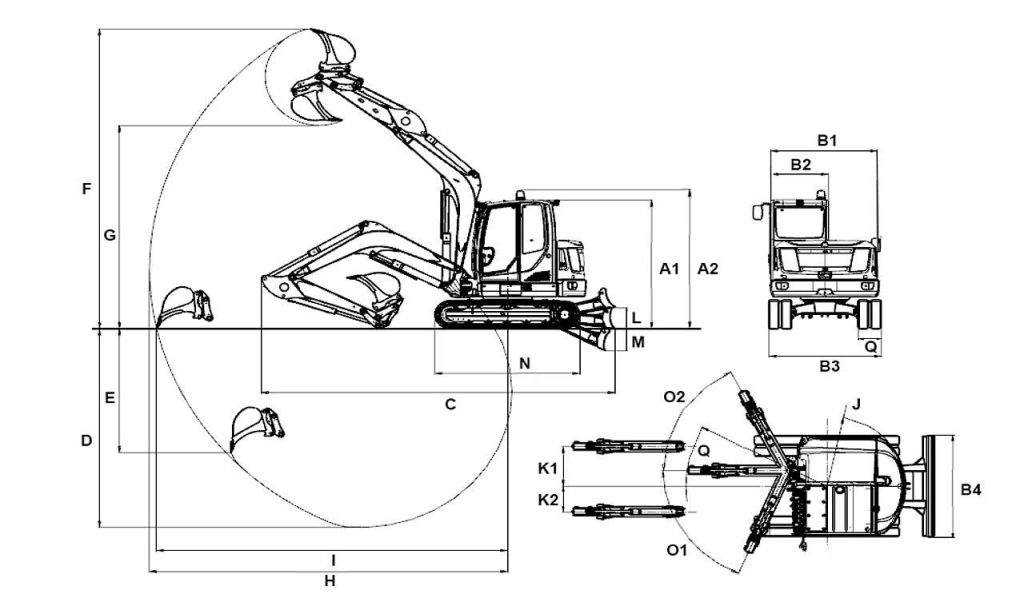

    EZ80 Dimensions

    • short dipperstick
      long dipperstick
    • A
      Height
      2,562 mm
      2,562 mm
    • B
      Width
      2,250 mm
      2,250 mm
    • B
      Width of the cabin
      1,000 mm
      1,000 mm
    • B
      Width of the undercarriage
      1,892 mm
      1,892 mm
    • C
      Transport length
      6,939 mm
      6,944 mm
    • D
      Digging depth max. max.
      3,919 mm
      4,169 mm
    • E
      Insertion depth max.
      1,915 mm
      2,124 mm
    • F
      Insertion height max.
      6,620 mm
      6,782 mm
    • G
      Dump height max.
      4,587 mm
      4,749 mm
    • H
      Digging radius max.
      6,955 mm
      7,190 mm
    • I
      Range max. on the ground
      6,795 mm
      7,036 mm
    • J
      Rear swivel radius w/o counterweight
      1,228 mm
      1,228 mm
    • J
      Rear swivel radius with counterweight
      1,341 mm
      1,341 mm
    • K
      Arm displacement max. to middle of bucket right side
      705 mm
      705 mm
    • K
      Arm displacement max. to middle of bucket left side
      683 mm
      683 mm
    • L
      Lift height max. levelling blade above formation
      474 mm
      474 mm
    • M
      Scraping depth max. of levelling blade below formation
      523 mm
      523 mm
    • N
      Length of running gear
      2,826 mm
      2,826 mm
    • O
      Turning angle max. arm system to the right
      63 °
      63 °
    • P
      Turning angle max. arm system to the left
      67 °
      67 °
    • Q
      Width tracks
      450 mm
      450 mm
    • R
      Boom slewing radius middle
      2,869 mm
      2,869 mm
    • —
      Boom slewing radius right
      2,724 mm
      2,724 mm
    • —
      Boom slewing radius left
      2,273 mm
      2,273 mm

    Wacker Neuson EZ80

    Lifting force tables EZ80






    Video Player





    EZ80 Standard components

    General

    • Rubber track 450 mm
    • Dozer blade
    • Working light mounted to the boom
    • Front light on the left and lights at the chassis on the left and right side
    • Tool kit incl. grease gun and operator manual

    Engine

    • Air filter with integrated cyclone pre-separator
    • Idle speed autom. operation

    Cabin

    • Tiltable glazed safety cabin: with heating, sliding side windows, front windscreen inwards retractable, windscreen wiper
      and washing system, full interior lining, swiveling bracket and armrests
    • Cabin complies with the current ROPS, TOPS and FOPS* regulations
    • FOPS protective guard class 1, *FOPS level II only when fitted with additional protective guard
    • Cabling for radio plus antenna and speakers
    • Cabling for cab lighting and rotating beacon
    • 3.5″ inch multifunctional display for device monitoring and status indication plus programmable pre-selections of flow capacities for additional control circuits
    • 3 exterior mirrors (1 on the left side of the cabine, 2 on the right side of the chassis)
    • Roller sunblind

    Hydraulic

    • Load Sensing Control (LUDV) with variable capacity pump, 160 l/min.
    • Hydraulic pilot control via joystick
    • Valve control according to ISO, DIN, SAE, PCSA and EURO
    • Auxiliary hydraulic connection for two directions of motion, mounted on dipperstick
    • Auto-2-speed transmission, dual travel speed operated automatically, 2nd gear manually lockable
    • Hydraulically dampened drive pedals
    • Hydraulic oil cooler
    • Proportional control for aux. hydraulic – AUX I
    • Overload warning system – Basic

    EZ80 Options

    Wacker Neuson offers you preconfigured editions.

    You can choose from the following editions:

    Basic Machine
    + PERKINS turbo-diesel engine (level 5)
    + Working lights front and rear
    + Counterweight
    + Overload valve for aux. hydraulic – AUX I
    + Preparation for Easy Lock – AUX IV
    + Automatic climate control
    + Overload system Advanced
    + 3rd control circuit – AUX II
    + Diesel refueling pump
    + Long dipper stick
    + Reversing camera
    (transport weight (+/- 2%): 8,045 kg)

    Basic Machine
    + PERKINS turbo-diesel engine (level 5)
    + Working lights front and rear
    + Counterweight
    + Overload valve for aux. hydraulic – AUX I
    + Overload valve for 3rd control circuit – AUX II
    + Preparation for Easy Lock – AUX IV
    + Preparation for Powertilt – AUX III
    + Automatic climate control
    + Diesel refueling pump
    + 3rd control circuit – AUX II
    + Overload system Advanced
    + Reversing camera
    + Driver seat with air suspension
    + Radio installation complete
    + Control circuit grapple – AUX V
    (transport weight (+/- 2%): 8,088 kg)

    Please note that the equipment cannot be changed for preconfigured products!
    Delivery times may vary (within EU about 10 business days ex work) – subject to prior sale.

    Of course, you can also configure your product based on the following options:

    Cabin

    • Automatic climate control
    • Radio installation complete
    • Driver seat with air suspension incl. seat heating system

    Hydraulic

    • Overload system Advanced
    • 3rd control circiut – AUX II
    • Overload valve for auxiliary hydraulic – AUX I
    • Overload valve for 3rd control circuit – AUX II
    • Preparation for Easy Lock – AUX IV
    • Preparation for Powertilt – AUX III
    • Control circuit grapple – AUX V
    • Flat faced couplers
    • Biological oil Panolin HLP Synt46

    Painting

    • Special paint machine in RAL (yellow parts only)
    • Special paint machine no RAL (yellow parts only)
    • Special paint of cabin or canopy RAL colours only

    Security

    • Security 24 C (2000)
    • Security 36 C (3000)
    • Security 48 C (4000)
    • Security 60 C (5000)

    Miscellaneous

    • PERKINS turbo-diesel engine 404D-22T, 2,216 ccm, 42 kW (57.1 PS) bei 2,000 rpm (level 5)
    • Reversing camera inlc. 7″ multifunctional display
    • ISO – SAE switchover
    • LED lights (all head lights, front and rear work lights)
    • Hybrid track 450 mm
    • Steel track 450 mm
    • Steel track 600 mm
    • Rotating beacon
    • Long dipperstick
    • Front and rear work lights
    • KAT immobilizer system
    • Driving signal
    • Diesel refueling pump
    • Counterweight
    • EquipCare

    Assebled attachments

    • Mechanic quick coupler system MS08 (not in combination with Easy Lock and Powertilt)
    • Easy Lock (preparation Easy Lock – AUX IV is required and must be ordered)
    • Easy Lock + Powertilt (preparation Easy Lock – AUX V and preparation Powertilt – AUX III are required and must be ordered)
    • EasyLock + Powertilt + load hook (overload system Advanced, preparation Powertilt -AUX III and preparation Easy Lock -AUX V are required and must be ordered)
    • Hydr. quick hitch system HS03H + load hook (hydraulic quick hitch system Lehnhoff HS03H with load hook; preparation Easy Lock – AUX V is obligatory; France: overload system Advanced is obligatory)
    • Hydr. quick hitch system HS03H + Powertilt + load hook (hydraulic quick hitch system Lehnhoff HS03H with Powertilt PT-070 and load hook; preparationPowertilt – AUX III and preparation Easy Lock – AUX V are obligatory; France: overload system Advanced is obligatory)

    EASY LOCK quick-hitch system – change attachments within 30 seconds:

    Attachments can be changed fast without the driver needing to leave the cab.

    EASY LOCK
    backhoe bucket    		 EASY LOCK
    face shovel    		 EASY LOCK + Powertilt



    EASY LOCK quick-hitch system

    HS 8
    Weight 87 kg
    Max. operating pressure 250 bar
    Construction height 122 mm



    EASY LOCK quick-hitch system + Powertilt

    HS 8 P
    Powertilt type PT 8
    Weight * 247 kg
    Turning angle 180°
    Max. operating pressure 250 bar

    * lower lifting force values

    Note: EASY LOCK is not available in Switzerland.
